Product Introduction

At present, data center cabinets are generally arranged in cold and hot aisle configurations. Install closed doors at both ends of the cold and hot aisle, and install a closed top plate above the cold and hot aisle to form a closed area for the cold and hot aisle. From the perspective of the airflow organization of the entire computer room, the channel closure physically isolates the cold and hot air, effectively avoiding the mixing of cold and hot air in traditional computer rooms, reducing the waste of cold and hot air, and greatly improving the efficiency of refrigeration.

Characteristics of cold aisle

Unit modular design, each unit can be independently installed, making installation and maintenance convenient and fast;

Diversified choices, available in single row and double row according to customers' actual needs;

High transparency tempered glass door, flat and beautiful, with optional double opening and movable doors;

Integrate with the fire department of the computer room to eliminate potential hazards in a short period of time;

High transparency top skylight ensures sufficient natural light in the passage;

The cabinet adopts honeycomb mesh doors with high permeability to ensure smooth airflow in the channel

Pre installed ports for the cold aisle system, which can be configured with modules such as cameras and temperature detection according to customer needs;

keel

Use cold-rolled steel plates with a material thickness of 1.5mm or more, a fully modular prefabricated structure, and the width of each individual module unit corresponds to the width of the cabinet, while the length corresponds to the width of the channel.

Flexible assembly, simple structure, and strong load-bearing capacity.

Each module unit has a reasonably designed routing space, and the skeleton provides hidden and managed wire positions to meet the cable management needs of all sensors and control components in the cold aisle.

The skeleton is tightly matched with the skylight and cabinet, with no gaps or leaks, no light transmission, and fully sealed treatment, effectively preventing short circuits of cold air in the cold aisle.

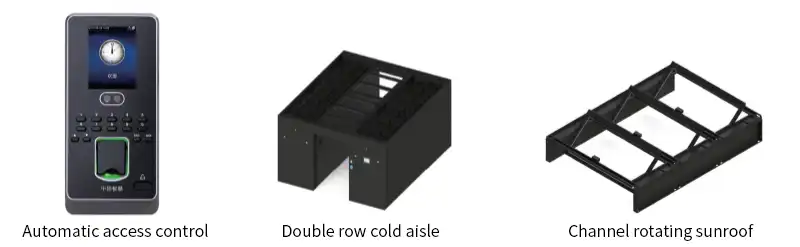

Channel rotating sunroof

The top cover of the closed channel component is designed as a mirror frame structure, ensuring a light transmittance of over 90%;

The sunroof frame is welded with silver and gold parts, with a simple structure and strong load-bearing capacity;

The middle is 5mm tempered glass covered with explosion-proof film, which is fire-resistant and impact resistant;

Shared pull beam, seamless array assembly, tool free installation for flipping sunroof, easy disassembly;

Upon receiving a fire alarm signal, the skylight automatically flips open.

Automatic sliding door

Adopting modular assembly design structure;

The door body is made of 12mm thick tempered glass, and the sliding door guide rail is made of reinforced aluminum profiles;

The access control adopts a diversified and high protection level system, supporting various methods such as card swiping, password, remote, etc;

Collaborate with the fire department, set up a fire linkage port, receive a fire alarm signal, and the sliding door will automatically open;

The entire sliding door body has no exposed installation screws, maintaining an overall aesthetic appearance.
