Product Features
Compliant with ANSI/EIARS-310-D, IEC297-2, DIN41491; PART1、DIN41494； PART7, GB/T3047.2-92 standards, compatible with ETSI standards;
The installation column is continuously adjustable, flexibly adapting to the installation of various specifications of 19 inch servers on shelves;
The frame is made of a single roll formed nine fold profile welded together, with a sturdy structure;

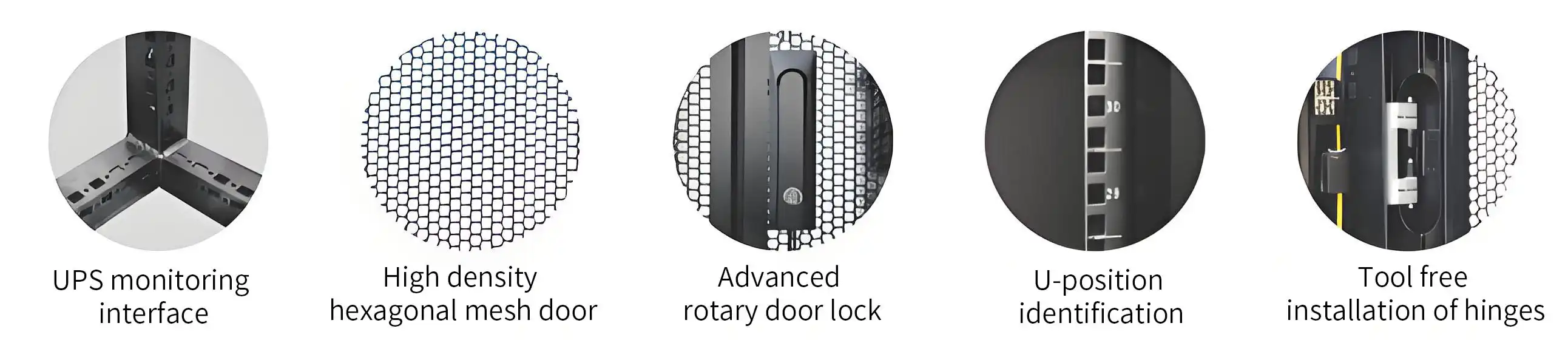

The front and rear doors adopt high-density hexagonal mesh ventilation doors to meet the heat dissipation needs of high-power equipment;
The design of separating strong and weak electrical wiring ensures the safe operation of equipment to the greatest extent possible;
Multiple specifications and sizes are available for selection, and can be flexibly configured according to different application needs;
Complete accessories to meet the various needs of different users;
Technical specifications
The installation column adopts standard 2.0mm cold-rolled steel plate
Static load capacity 1800KG
Mesh door ventilation rate of 75%
Protection level IP20
Surface treatment: degreasing, ceramicization, electrophoresis/electrostatic spraying process
Cabinet product specifications
| 42U server cabinet | ||||
|---|---|---|---|---|
| NO. | Model | Height | Depth | Width |
| 1 | CMH-ST-6042 | 2000 | 1000 | 600 |
| 2 | CMH-ST-6142 | 1100 | ||
| 3 | CMH-ST-6242 | 1200 | ||
| 4 | CMH-ST-8042 | 1000 | 800 | |
| 5 | CMH-ST-8142 | 1100 | ||
| 6 | CMH-ST-8242 | 1200 | ||
| 47U server cabinet | ||||
| NO. | Model | Height | Depth | Width |
| 1 | CMH-ST-6047 | 2200 | 1000 | 600 |
| 2 | CMH-ST-6147 | 1100 | ||
| 3 | CMH-ST-6247 | 1200 | ||
| 4 | CMH-ST-8047 | 1000 | 800 | |
| 5 | CMH-ST-8147 | 1100 | ||
| 6 | CMH-ST-8247 | 1200 | ||
| 54U server cabinet | ||||
| NO. | Model | Height | Depth | Width |
| 1 | CMH-ST-6054 | 2500 | 1000 | 600 |
| 2 | CMH-ST-6154 | 1100 | ||
| 3 | CMH-ST-6254 | 1200 | ||
| 4 | CMH-ST-8054 | 1000 | 800 | |
| 5 | CMH-ST-8154 | 1100 | ||
| 6 | CMH-ST-8254 | 1200 | ||

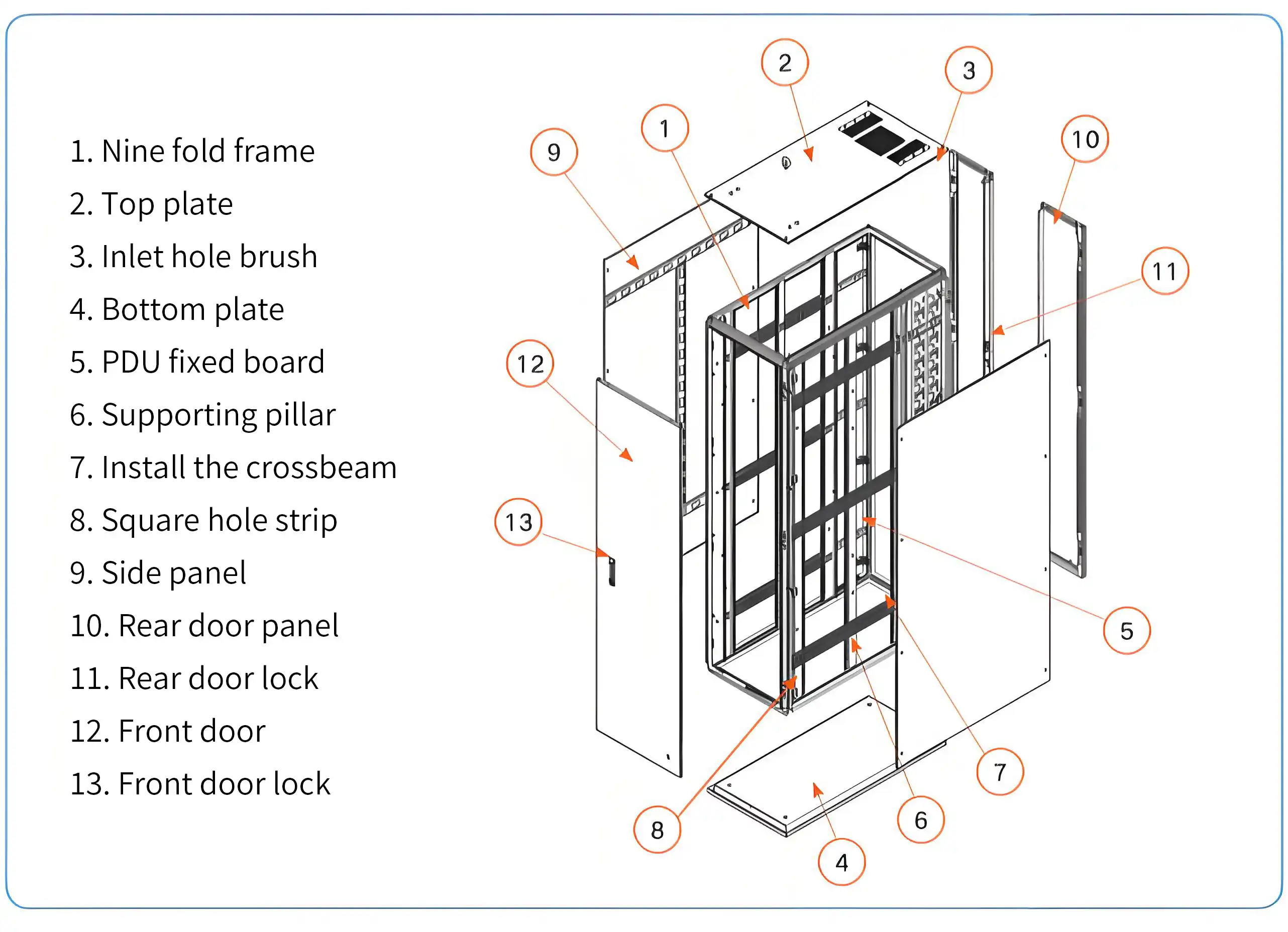

Cabinet Standard Configuration List
| Serial Number | Category | Content | Plate Thickness | Unit | Quantity | Description |
|---|---|---|---|---|---|---|
| 1.1 | Cabinet Body | Nine - fold Frame | SPCC 1.5mm | Set | 1 | Nine - fold profile frame |
| 1.2 | Top Cover | SPCC 1.2mm | Set | 1 | With strong and weak current inlet holes | |
| 1.3 | Bottom Plate | SPCC 1.2mm | Set | 1 | Integral bottom plate | |
| 1.4 | Double - open Mesh Rear Door | SPCC 1.2mm | Set | 1 | Hexagonal mesh double - open rear door | |
| 1.5 | Single - open Mesh Front Door | SPCC 1.2mm | Set | 1 | Hexagonal mesh single - open front door | |
| 2.1 | Inner Frame | Support Column | SPCC 2.0mm | Set | 2 | Cabinet keel, ensuring PDU and patch panel inlay |
| 2.2 | Installation Beam | SPCC 1.5mm | Set | 6 | Provides installation positions for square hole strips and inner columns | |
| 2.3 | Square Hole Strip | SPCC 2.0mm | Set | 4 | Provides 19 - inch standard installation | |
| 2.4 | Ground Wire | -- | Set | 3 | 2.5mm² ground wire, ensuring grounding continuity of the front and rear doors of the cabinet body | |
| 3.1 | Packaging | Product Packaging | -- | Set | 1 | High - quality corrugated paper edge - wrapping + waterproof plastic bag |
